Four-in-one inspection line system equipment for automobile maintenance industry nanhua

Four-in-one inspection line system equipment for automobile maintenance industry nanhua

Certification:ce
Place of Origin:Guangdong,China
Model Number:NHS-03Q
Maximum wheel...2000kg

0086-13764058563

Features
Features

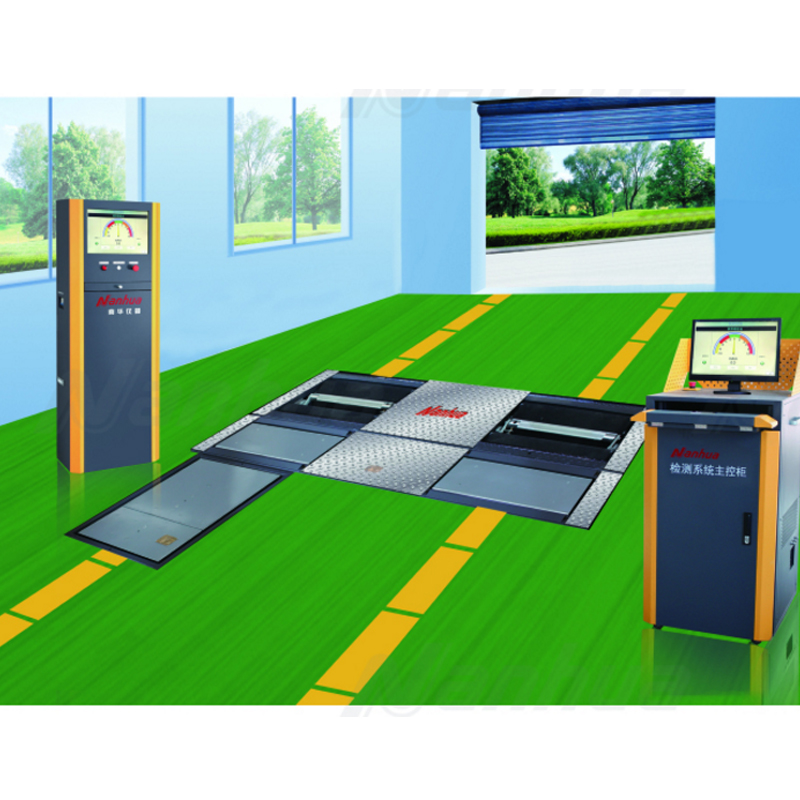

NHQT-4 four-in-one automotive testing line is a new generation of products developed by our company by using advanced testing
technology and combining with the actual needs of users. It is mainly used for the comprehensive performance of the vehicle to be
repaired (or completed vehicle) in the automotive maintenance industry: the performance indicators such as side slip, wheel
weight, suspension performance, and automobile braking force are tested on a test bench that simulates roads and is dynamically
detected. Automobile detection equipment for automobile sideslip, suspension, braking force and other items.
The control system of NHOT-4 is independently designed and developed by our company. It is a lively and flexible combination
method that better meets the needs of customers. This product has high technology, simple operation, small footprint, economical
and practical, and is widely used in auto repair shops, 4S shops and teaching and research institutions.
Product Paramenters
model
NHS-03Q
Maximum wheel load
2000kg
Maximum detection wheel load
1500kg
Side slip detection range
±15.0m/km
Indication of side slip
±0.1m/km
Calibration ratio
1 mm:2. 0m/km
Detection of slide size (LXW)
575 X 500mm
Relaxation board size (LXW)
575 X 245mm
Dimensions (LXWXH)
830X 700X 65mm
equipment weight
About 100kg
Use ambient temperature
0~40'C
Use of ambient humidity
≤90%
Product Description
