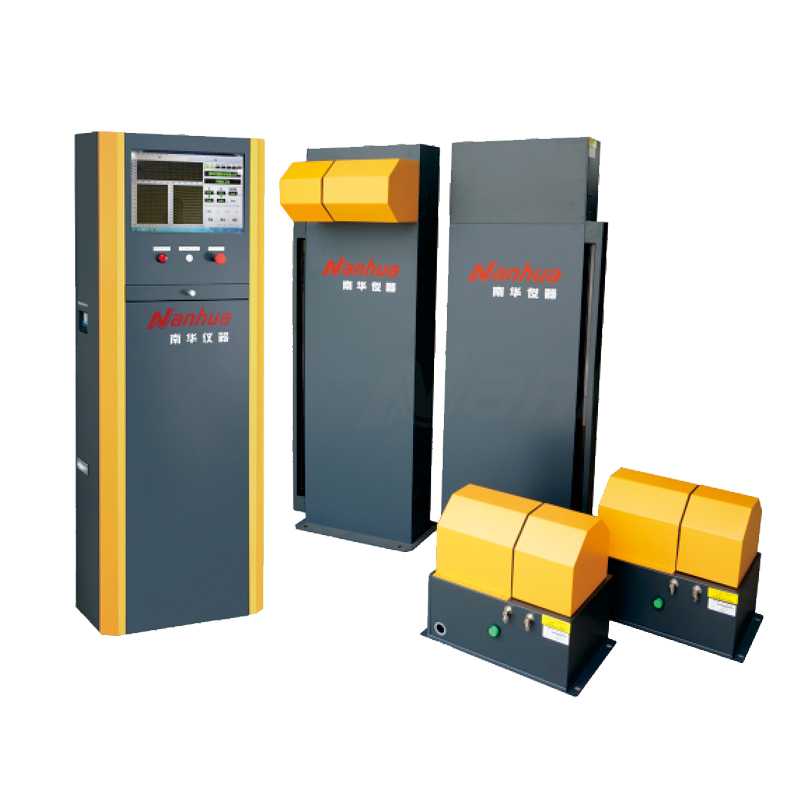

Vehicle Dimension Tester nanhua

Place of Origin:China
Warranty:1Years
Relative humidity:s95%(Non-condensing)
Measure vehicle l...3.5-23m

0086-13764058563

Features

Adopting advanced laser scanning measurement technology, the laser scanner uses imported products, which is at the international advanced level,with high measurement accuracy and fast acquisition speed.
The in-place photoelectric switch uses original imported originals, which has reliable performance and long service life.
Adopt PLC for automatic control, good environmental applicability, strong anti-interference ability, high operation reliability and good stability.
Equipment surface electrostatic powder spraying treatment, and ordinary spraying Compared with lacquer process, it has strong adhesion, rust and corrosion resistance Can be high.
The scanner has an automatic protection device to ensure that the surface of the laser scanner is clean and the test results are accurate and reliable.
The equipment has high expansion performance, and users can purchase the high function module and pin wheel distance measurement module.

Product Paramenters

temperature	-0°C-40°C	Relative humidity	≤95%（Non-condensing）
power supply	187V - 242V 50Hz±1%	Measure vehicle length	3.5-23m
Measuring car width	1.2-3.5m	Measuring vehicle height	1.2-4.5m
Measurement error	≤1%or20mm	Tested vehicle passing speed	About3to5km/h
