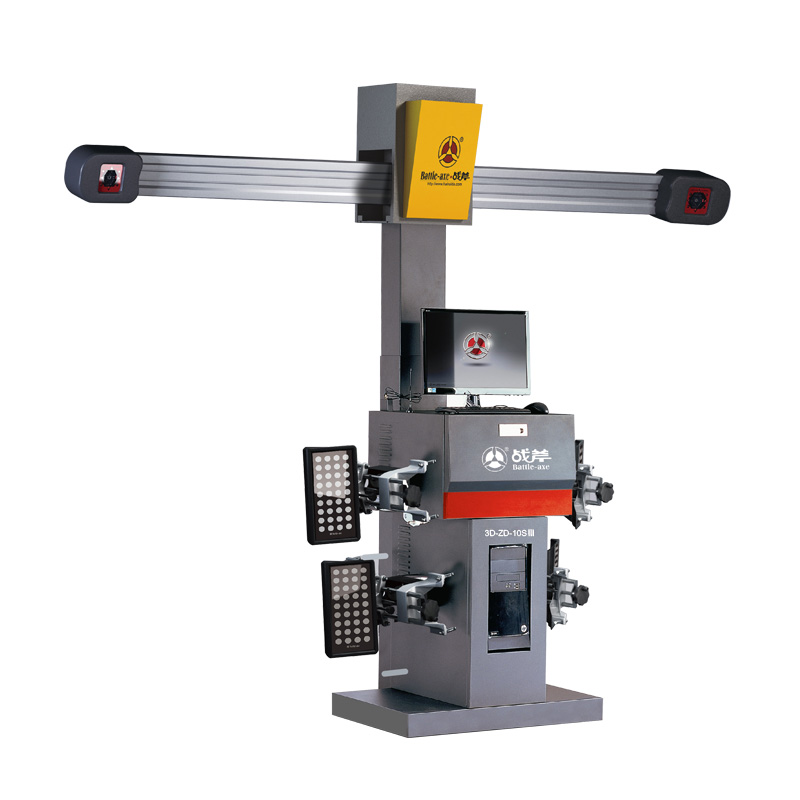

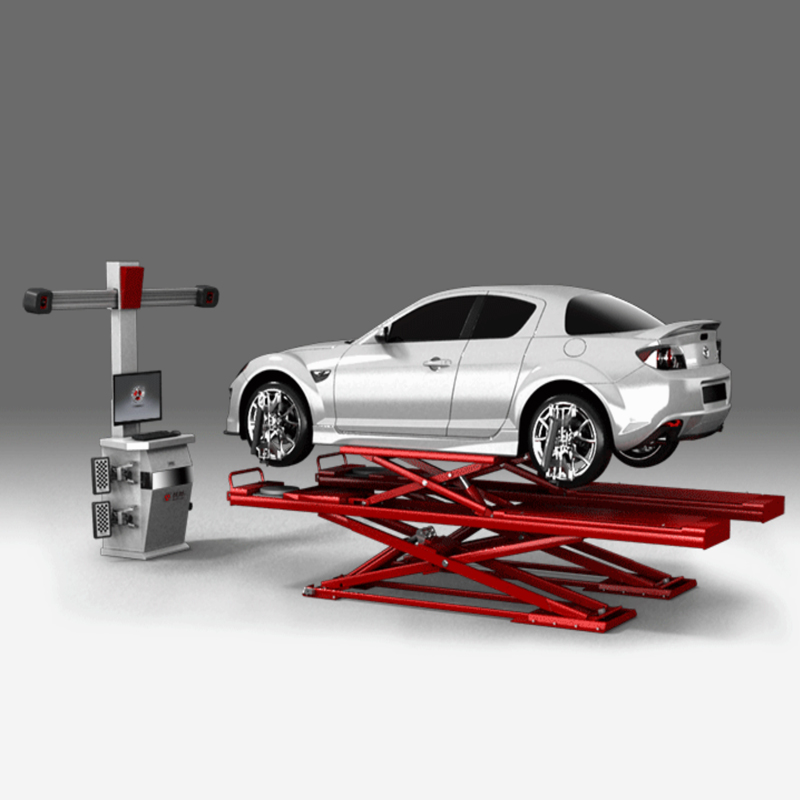

Battle-axe Four wheel aligner 3D Aligner for CAR--Dynamic Scanning with HD Camera Fully Automatic Ta

Battle-axe Four wheel aligner 3D Aligner for CAR--Dynamic Scanning with HD Camera Fully Automatic Target Tracking

Place of Origin:China
Warranty:1Years
Castor:±3(±0.05）
Toe:±2（±0.03）

0086-13764058563

Features

-Automatic Tracking Target and Electronic remote controller, Camera beam Length:2782mm
-2pcs 32''TV show Measuring data & Parking Turntable Function
-can alignment vehicle through push or withouth push
-2pcs 5 Mega pixel camera
-One interface show all parameters of front wheel and rear wheel(Toe,Camber,castor etc)
-with Track width and Wheelbase measuring interface also
-never Recalibrate Request for whole machine to save cost and energy
-machine still can work if one or two target lost for careless
-With Parking camera function to drive front wheel to turntable middle easily

Product Paramenters

Parameters	Precision	Resolution	Measure Range
SAI/KPI	±3′（±0.05º）	0.6′（0.01º）	±20º
Castor	±3′（±0.05º）	0.6′（0.01º）	±20º
Camber	±2′（±0.03º）	0.6′（0.01º）	±10º
Toe	±2′（±0.03º）	0.6′（0.01º）	±10º
ThrustAngle	±2′（±0.03º）	0.6′（0.01º）	±10º
Track Width	±2mm	0.1mm	1200-2200mm
Wheelbase	±2mm	0.1mm	1600-4200mm
Wheel Offset	±2mm	0.1mm	±200mm
Lateral Deviation	±2mm	0.1mm	±200mm
Castor Offset	±2mm	0.1mm	±200mm
Rim Size	13～24
