Nanhua Speedometer tester Car inspection equipment

Place of Origin:Guangdong,China
Warranty:1Years

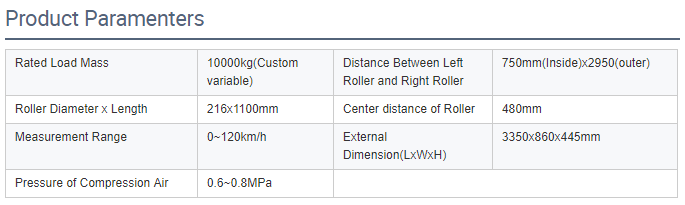

Roller Diameter x...216x1100mm
External Dimensi...3350×860×445mm

0086-13764058563

Features

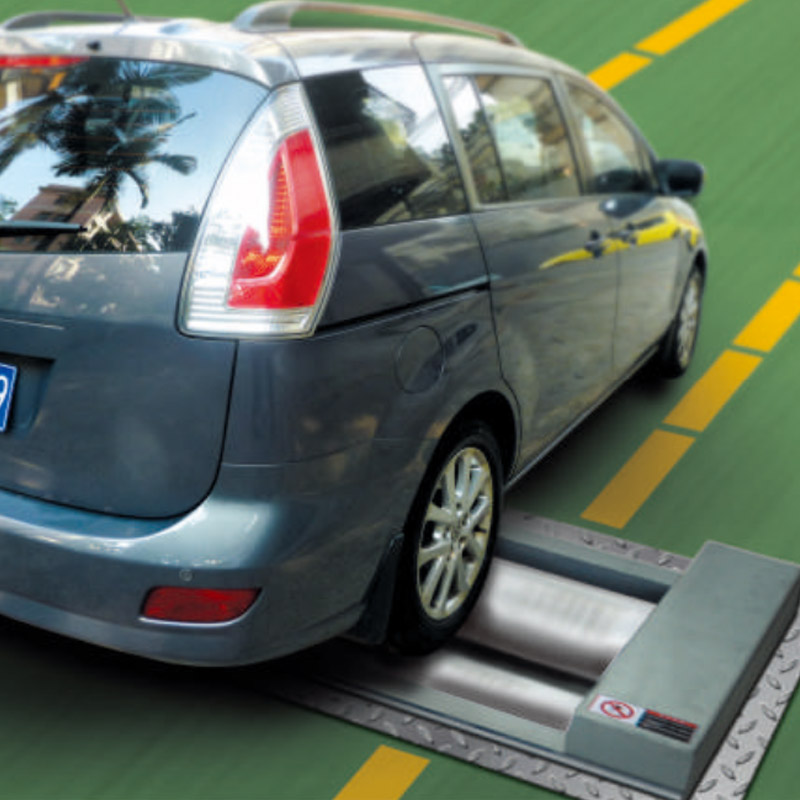

Speedometer tester is for testing the indication error of vehicle speedometer. When a vehicle is driven on the test bench,performance and indication error of the speedometer can be tested at driving speed of 0一120 km/h,  and  determine  whether  the  speedometer  is qualified ar not. It is one of the necessary equipments for vehicle safety test and comprehensive performance test.

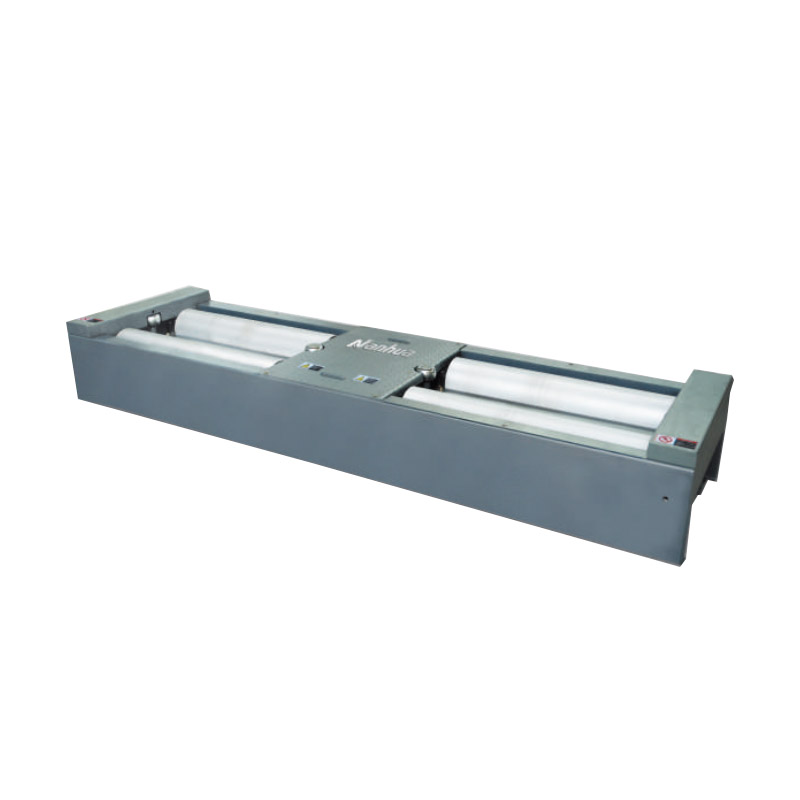

Main construction and characteristics of NHM series SeedometerS Tester:
1、Overall square steel tubes and carbon steel construction welding  are  adapted  for the  bench,  with  structural precision, high strenyth and rolling compaction resistance:
2、The  roller  surface  is  with  chrome-plated  knurled treatment, it is durable and the vehicle tires are wear-free.
3、With high-precision speed sensor to ensure stable and reliable test accuracy.
4、Air springs are adopted for the lift, lifting is fast. reliable maintenance is easy.
5、Star elastic coupling is used in the transmission system,the transmission power is good and with low noise, the service life is long, installation and adjustment are easy.
