Product

PRODUCT

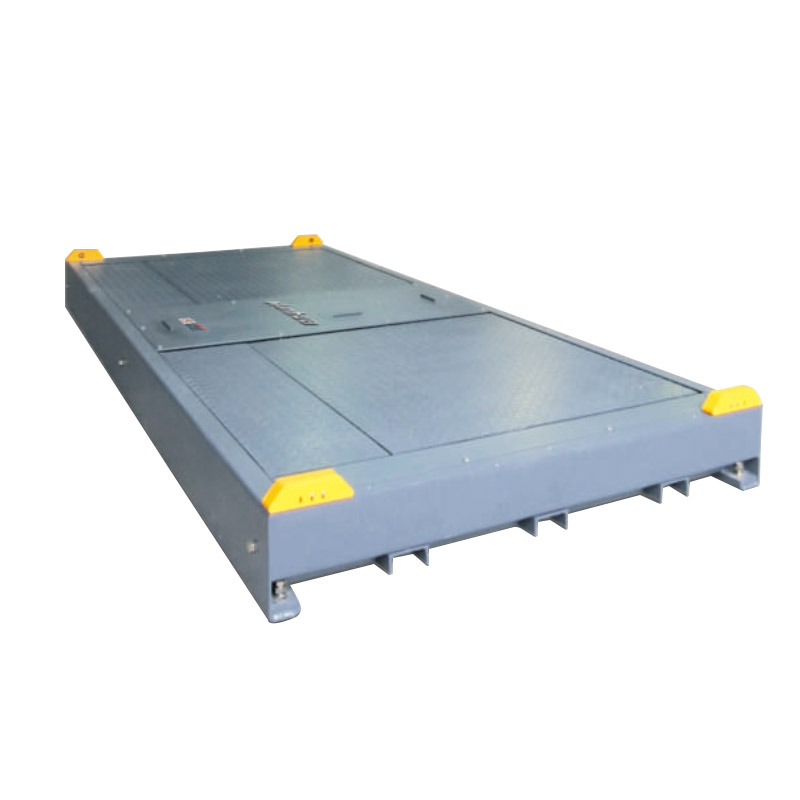

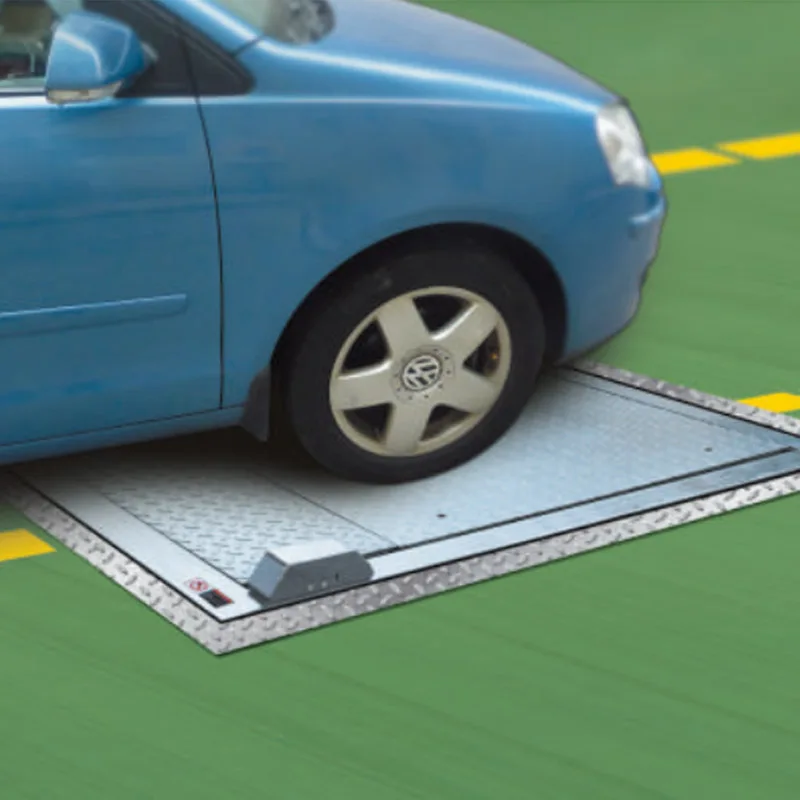

Nanhua Side slip tester Car inspection equipment

Place of Origin:Guangdong,China
Warranty.:1Years
Size of Slide Plate:1100×1000mm
Measurement Ra...0~±10m/km

0086-13764058563

Features

Side Slip Tester is for testing the sliding amount of the vehicle steering wheels.Deformation and wear of the vehicle frame, axles, steering mechanism  may exist in the appliqatiqn,  the steering wheel  kingpin  inqlinatipn,the standard  parameters of the back  rake angle and camber, toe, steering wheel may be changed and cause the steering wheel to run forward during driving, side sliding accident may exist. Therefore, it is required to test the sliding amount of the steering wheel regularly and judge the sliding  parameters of the vehicle.  Side slip tester is one of the necessary equipments for vehicle safety test and comprehensive performance test.
Main construction and characteristics of NHS series Side ship Tester:
1、Overall bench structure, dual-plate linkage with releasing plate.
2、The bench is welded with high-quality carbon steel plates and square steel tubes, with high structural strengths and good appearance.
3、High-precision displacement sensor is applied, it is stable and reliable. precise and accurate.
