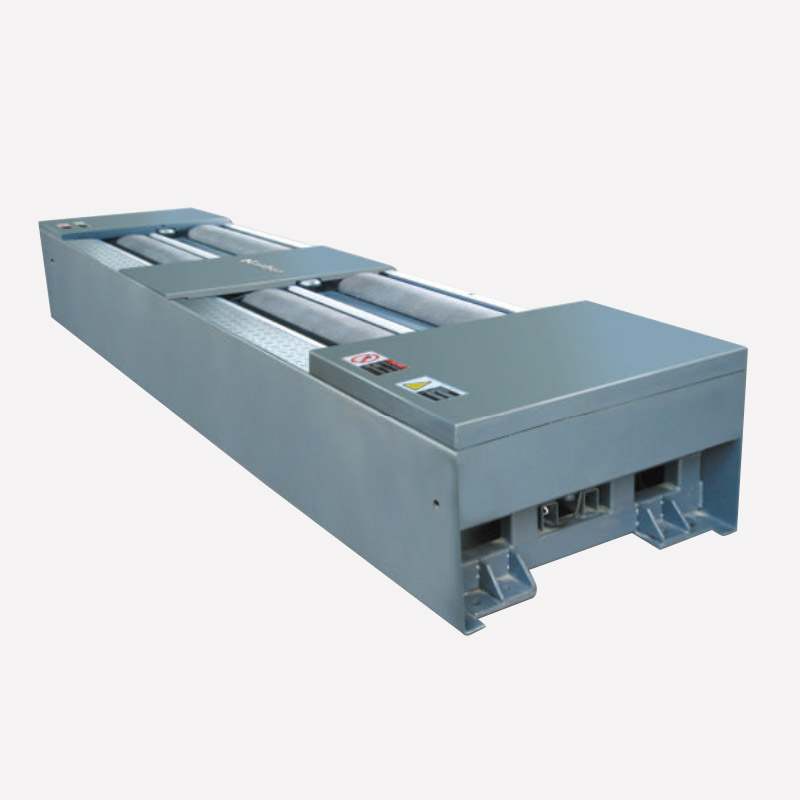

Nanhua Brake tester Car safety test

Place of Origin:Guangdong,China
Warranty:1Years

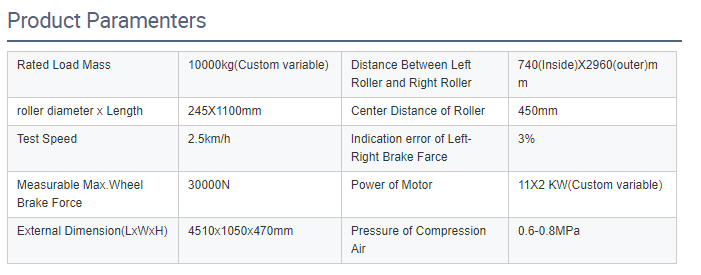

roller diameter x...245X1100mm
Power of Motor:11X2 KW(Custom variable)

0086-13764058563

Features

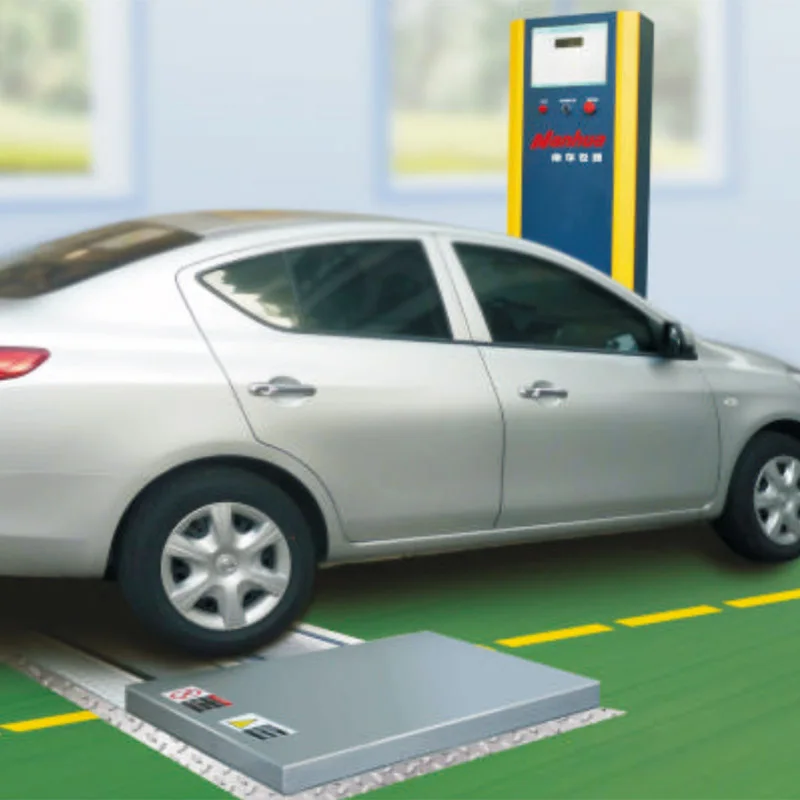

Brake Tester is for testing the brake force of front-back wheel of a vehicle. When a vehicle is driven on the test bench, brake forces of front-back wheel and left-right wheel, inter-wheel differential value, brake force balance,blocking force, brake reaction time can be tested, and the vehicle brake force can be determined qualified or not. It is one of the necessary equipments for vehicle safety test and comprehensive performance test.
Main construction and characteristics of NHZ series Brake Fester:
1、Overall square steel tubes and carbon steel construction welding  are  adopted  for the bench.it is structural precision, high strength and rolling compaction resistance.
2、The surface of the roller is treated with precision sticky sand. it is durable and with long service life. tires will be wear-free even though the vehicle is running at low speed while testing.
3、With high-precision brake farce sensor and speed sensor.stable and reliable measurement accuracy can be guaranteed.
4、The third roller is steel chrome-plated knurled roller, it is reliable, safe and practical.
5、Air springs are used for the lifts,  lifting is fast and reliahle,maintenance is easy.
6、With roller chain drive system, power is transferred greatly and accurately, the service life is long.
