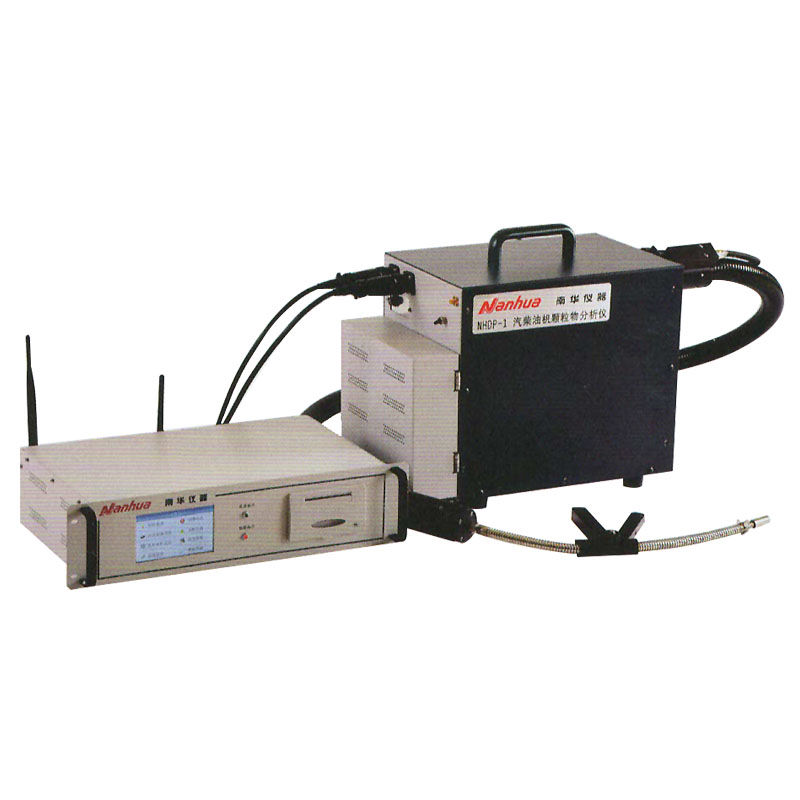

NHDP-1Gasoline diesel particulate matter analyzer

Place of Origin:Guangdong,China
Warranty:1Years
measurement ac...±10%
Repeatability error:±2%
0086-13764058563
Features
The NHDP-1 gasoline and diesel engine particulate matter analyzer is a new type of automotive particulate concentration measuring instrument, also known as the second generation opacity meter (Second Gengeration Opacimeter), which is low compared to the traditional opacity meter. The concentration measurement has high sensitivity and signal-to-noise ratio (sensitivity is about 10~100 times that of opacimeter), and the range can be adjusted. The measurement method is simple and reliable. The principle of measurement is the principle of particle light scattering (Mie scattering theory), so the minimum diameter of particles can be measured to be about 200 nm. It is mainly used for low-emission measurement of the concentration of particulate matter in compression ignition diesel engines and direct injection gasoline engines. Trends in future regulatory measurements.
Features
1. It has a special protective air curtain to avoid the pollution of the optical system of the instrument by the smoke and dust, and ensure the high reliability of the instrument.
2. The flue gas is heated at a constant temperature to prevent condensation of moisture in the flue gas and affect the measurement results.
3. The measurement range can be adjusted according to the actual situation, which improves the measurement sensitivity and accuracy.
4, equipped with a dedicated manual calibration tool for easy zero and span calibration.
5. Integrate the online filter sampler to achieve continuous monitoring of particle concentration and filter sample compatibility. It can analyze the components of the collected particles and determine the mass concentration conversion coefficient of the application.
6, using a laser source, the mass concentration conversion coefficient is not affected by the color of the particles.
7, using a color LCD touch screen, full Chinese interactive menu prompts, direct reading mass concentration (mg / m3). Provides steady-state and transient measurement interfaces for easy, intuitive and convenient operation.
8, with engine oil temperature, speed measurement function.
9. Measurement data can be printed by a micro printer.
10. With various communication interfaces, the measurement data can be imported into the PC for processing.
11, with clock date function and license plate number input function.
12. More than 500 sets of measurement data can be saved.
