K.NHD-1100CE Intelligent automatic far and near light detector and Headlamp detector

Place of Origin:Shanghai,China(mainland)
Model Number:K.NHD-1100CE
Type:Headlamp detector
Voltage:24V

0086-13764058563

Main Features and Specifications

Technical Parameters:
1, the rated use of
Temperature: 0 ~ 40 ℃
Relative humidity: ≤80%
Power: AC 220V ± 10% 50Hz
DC 6V (No. 1 battery 4)
2, measuring range
High light intensity: 0 ~ 40000cd,0-120000cd. ± 12%
High beam optical axis offset
Vertical: Upper offset 233mm / dam ~ Lower offset 408mm / dam ± 44mm / dam
Horizontal: left offset 408mm / dam ~ right offset 408mm / dam ± 44mm / dam
3, high headlamp center instructions range: 0.5 ~ 1.3m
4, detection distance: 1m
5, Dimensions: 620 × 550 × 1450 (L × W × H) mm
6, weight: 25kg

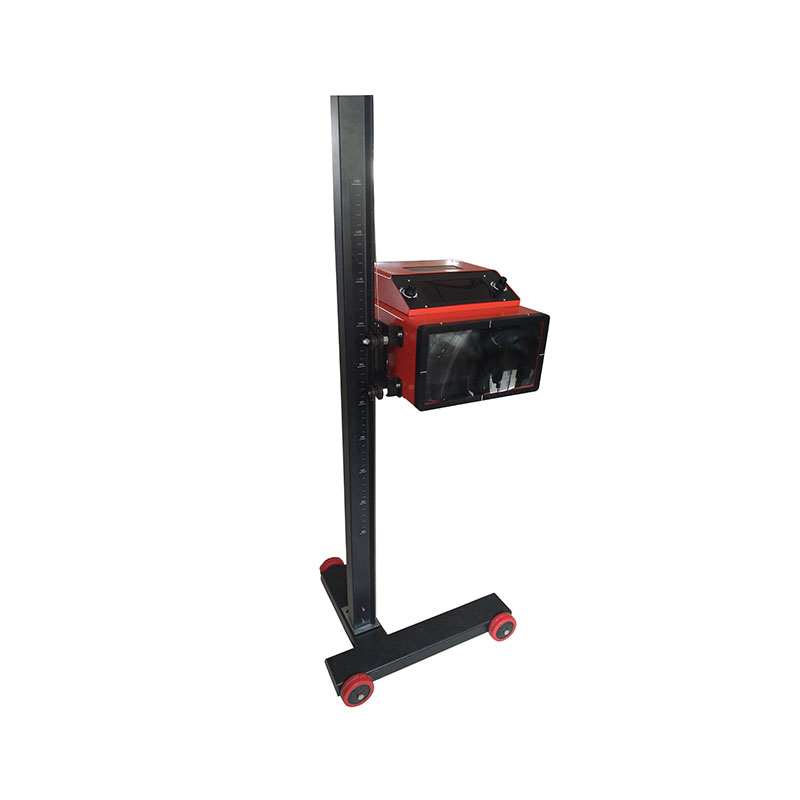

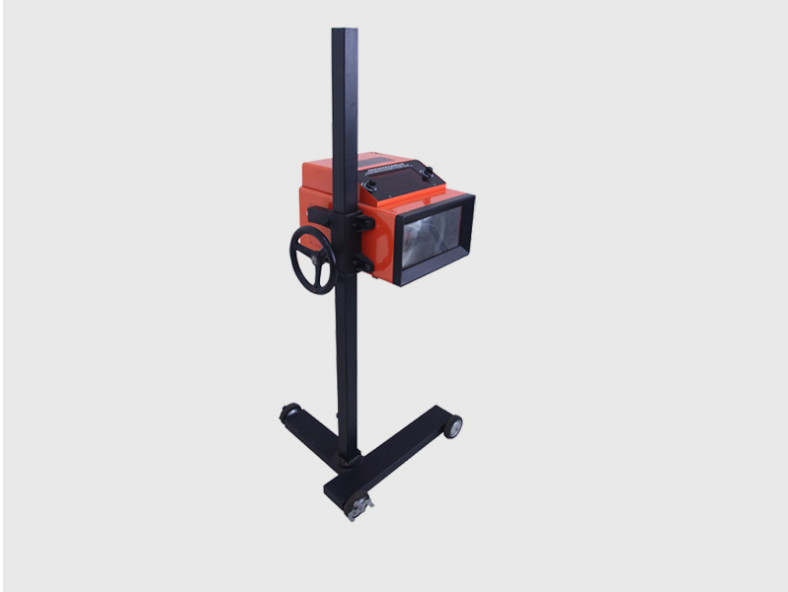

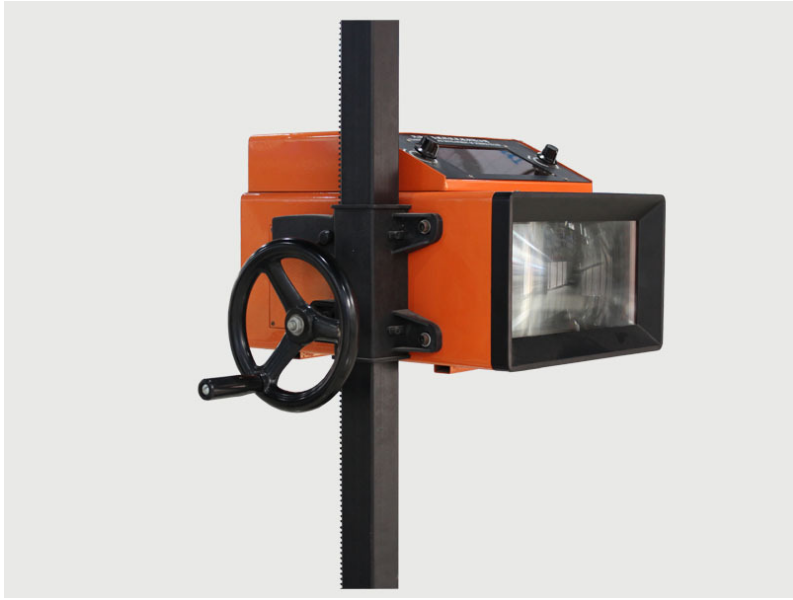

Detailed Images

1) One-piece structure for easy operation.
2) Highlight digital display, intuitive and convenient, high measurement accuracy.
3) With network data transmission function, automatic processing and display of measurement results.
4) With data printing, external printer (optional).
