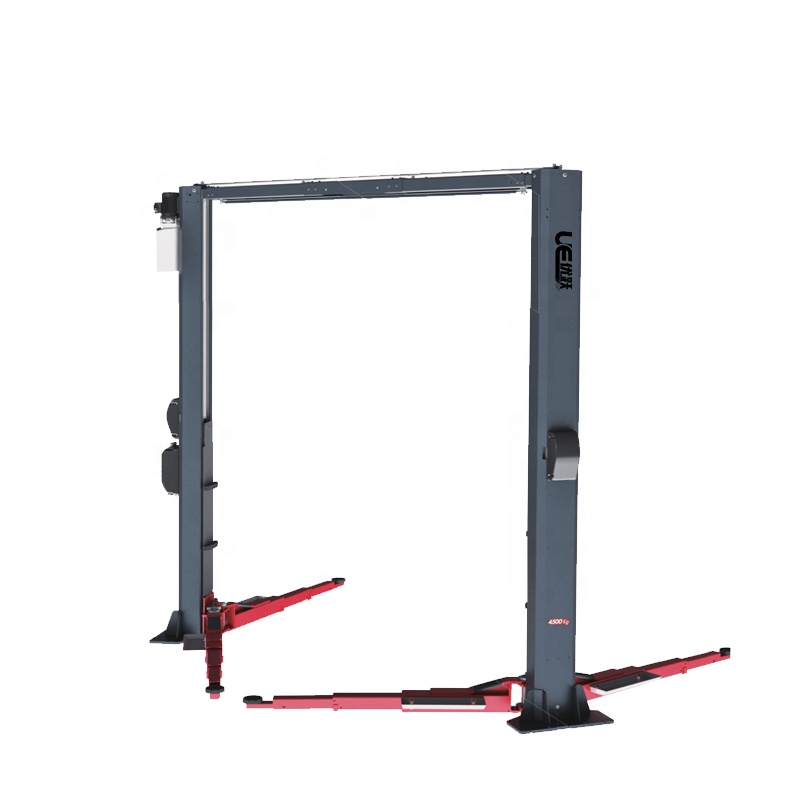

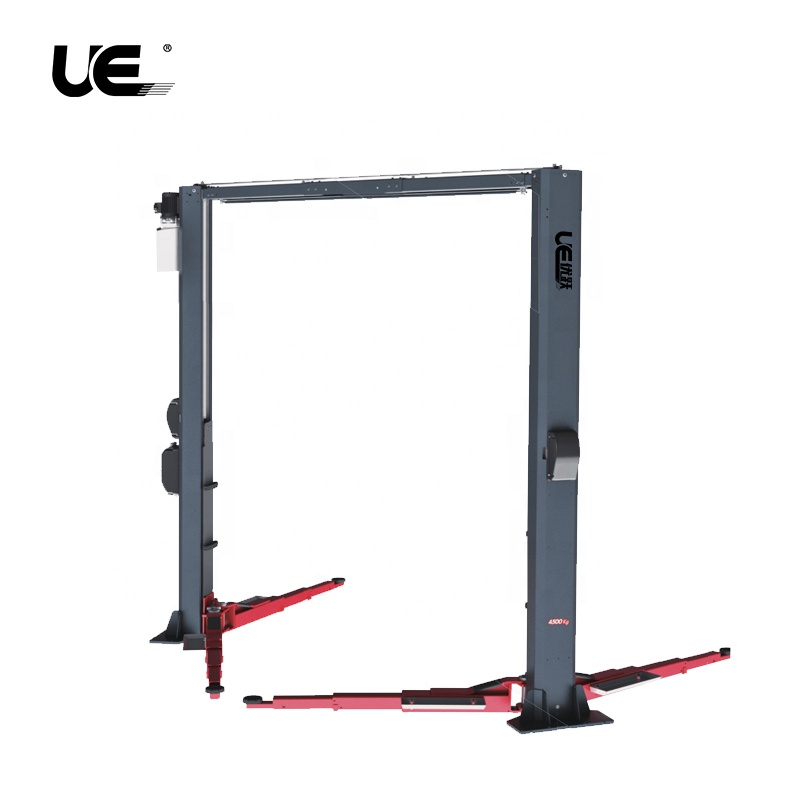

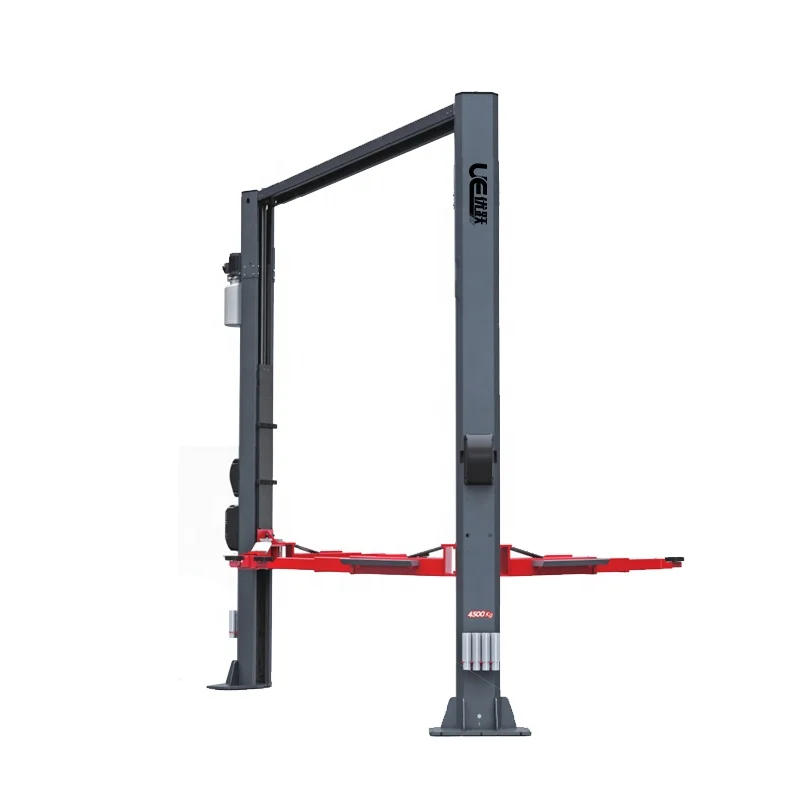

4.0T Electrical release floorplate 2 post car lift

4.0T Electrical release floorplate 2 post car lift

Place of Origin:Shanghai,China
Model Number:UE-8235PD
Certification:CEISO
Design:2 post
Color.Blue,Rad,Gray
Usage:CAR REPAIR MAINTANCE LIFTING

0086-13764058563

Product Description

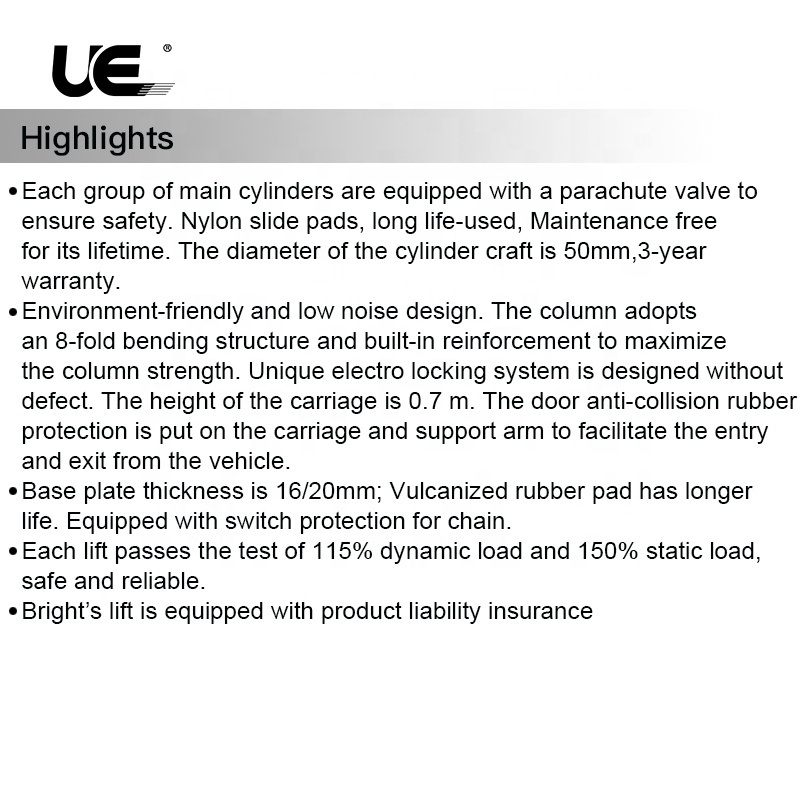

Highlights

●Each group of main cylinders are equipped with a parachute valve to ensure safety. Nylon slide pads, long life-used, Maintenance free for its lifetime. The diameter of the cylinder craft is 50mm,3-year warranty. ●Environment-friendly and low noise design. The column adopts an 8-fold bending structure and built-in reinforcement to maximize the column strength. Unique electro locking system is designed without defect. The height of the carriage is 0.7 m. The door anti-collision rubber protection is put on the carriage and support arm to facilitate the entry and exit from the vehicle. ●Base plate thickness is 1 6/20mm; Vulcanized rubber pad has longer life. Equipped with switch protection for chain. ●Each lift passes the test of 1 1 5% dynamic load and 1 50% static load, safe and reliable. ●Bright's lift is equipped with product liability insurance

Technical

                                                                      45S                    55S
Capacity                                                    4500kg            5500kg Lifting time                                                  38s                    38s Lowering time                                            38s                     38s Motor                                                     380V 3Kw           380V 3Kw
                                                        3Ph 50Hz-60Hz     3Ph 50Hz-60Hz Lifting height                                        1810mm              1810mm Minimum height                                    100mm                100mm Total width                                      3920/4 150mm       3920/4 150mm Total weight                                            1120Kg                1170Kg
Detailed Images
