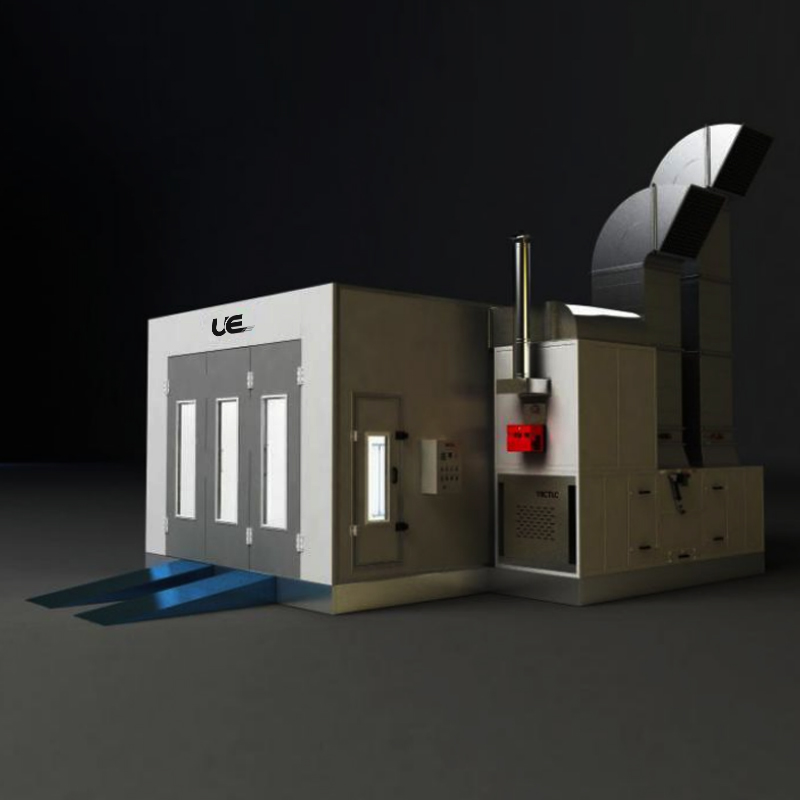

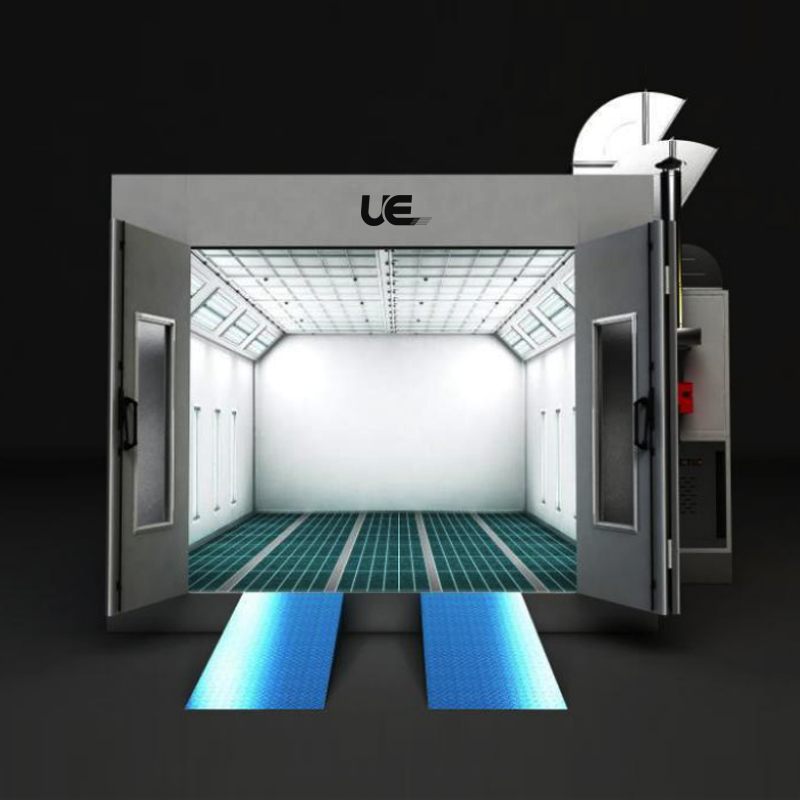

Paint room Spray booth UE-500

Type:Spray Booths
External Size:7000x5350x3400mm
Voltage:220V
Place of Origin:Shanghai, China

0086-13764058563

Features
The chemical treatment line is used for rust removal before spray painting and powder spraying, which can increase the adhesion, drying performance and decoration performance of the coating. After pretreating and normal drying, the parts need the high temperature baking to get the smooth, Corrosion resistance and beauitlful parts. The Laser machine has the function of high speed, high efficiency,high performance, high precision, fast cutting speed, narrow cutting seam, smooth cutting surface, less material consumption.
Product Parameters
Outside Dimension (mm)
7000×5350×3400
Inside Dimension(mm)
6900×3900×2650
Front Door(mm)
3000×2600(W*H)
Service door(mm)
800×2000(W*H)
Total Power
17kw
Cabin system
Front door
Sheet metal door, double side with PU insulated
Wall panel
50mm EPS sandwich panel, steel sheet thickness: 0.476mm
Ceiling panel
0.8mm galvanized steel sheet
Basement
300mm depth construction galvanized basement, full galvanzed grids
Ramps
For option
Door glass
5mm tempered glass
Air make-up system
Air inlet fan system
1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper
Exhausted fan system
1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper
Air inlet capacity
30000m³/h
Exhuasted capacity
30000m³/h
Exhausted ducting
six meters straight galvanized ducting and two 135 degrees elbows
Purification system
Pre-filter
G3 grade
Ceiling filter
600G filter EU5 / F5
Floor filter
Fiberglass filter
Exhausted filter
Filber glass and carbon filter
Heating system
Heat Exchanger
SUS304 200KW stainless heating exchanger
Heating burner
Riello G20 diesel oil burner(gas burner is for option)
Heating productivity
20000Kcal/hour
Spray to baking switch
Pneumatic damper
Chimney ducting
4 meters chimney and one chimney elbow
heating temperature
Maximum 80℃
fuel consumption
6-8L/vehicle
Lighting system
Ceiling lighting
8 Units, each 4 * 24W LED lamps.
Side lighting
8 Units, each 4 * 24W LED lamps.
Illumination
1200LUX
Control system
Switch controlling system
Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm,
pressure gauge
