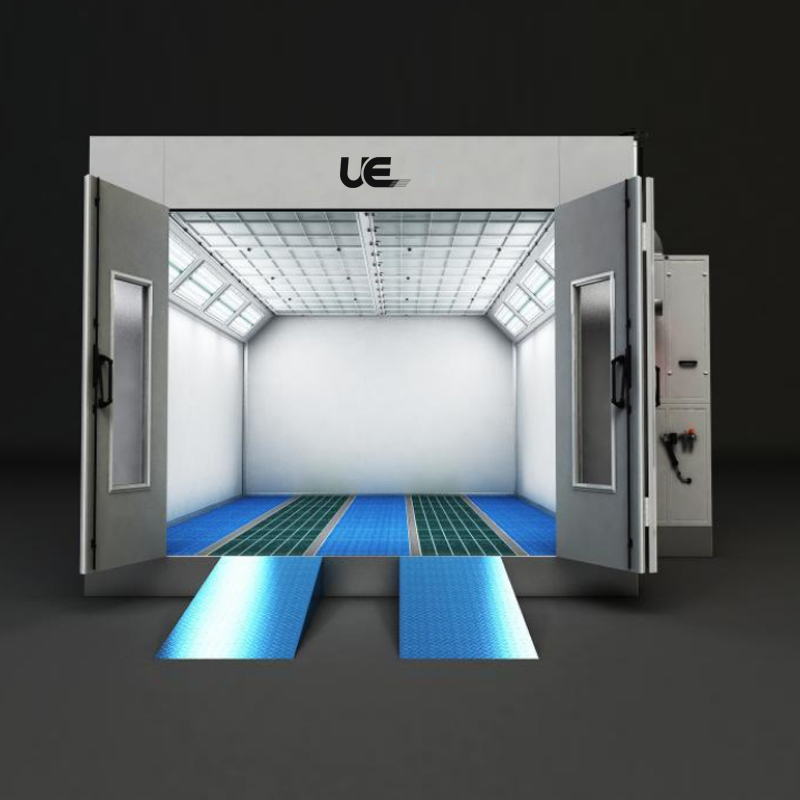

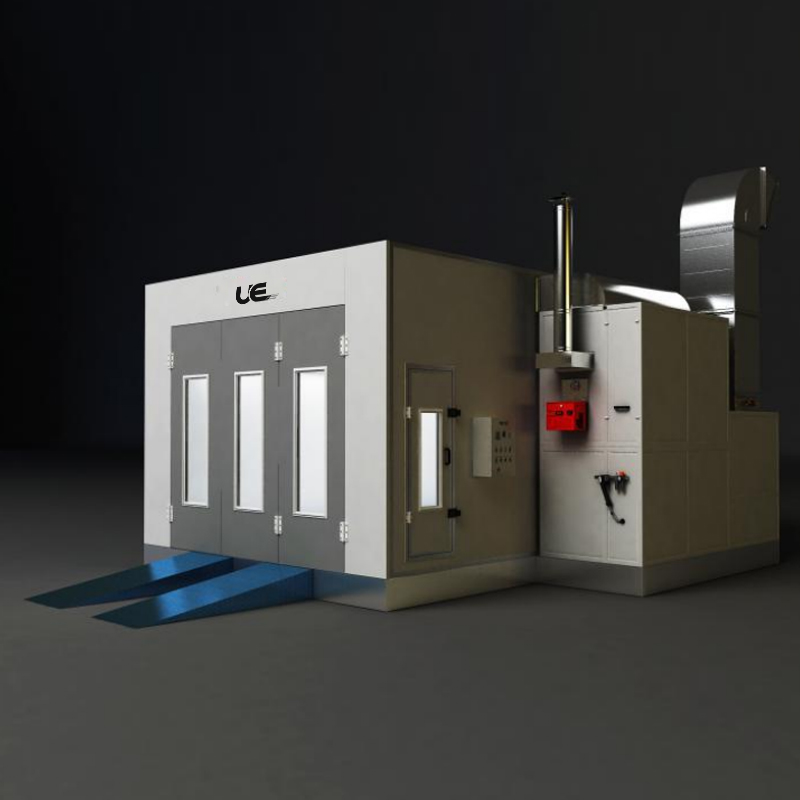

Paint room Spray booth UE-200

Paint room Spray booth UE-200

Type:Spray Booths
External Size:7000×5250×3400mm
Voltage:220V
Place of Origin:Shanghai,China

0086-13764058563

Features
The chemical treatment line is used for rust removal before spray painting and powder spraying, which can increase the adhesion, drying performance and decoration performance of the coating. After pretreating and normal drying, the parts need the high temperature baking to get the smooth, Corrosion resistance and beauitlful parts. The Laser machine has the function of high speed, high efficiency,high performance, high precision, fast cutting speed, narrow cutting seam, smooth cutting surface, less material consumption.
Product Parameters
Outside Dimension (mm)
7000×5250×3400
Inside Dimension(mm)
6900×3900×2650
Front Door(mm)
3000×2600(W*H)
Service door(mm)
800×2000(W*H)
Total Power
15kw
Cabin system
Front door
3 folded sheet metal door, double side with PU insulated
Wall panel
50mm EPS sandwich panel, steel sheet thickness: 0.476mm
Ceiling panel
Galvanized steel sheet
Basement
300mm depth construction galvanized basement, two rows galvanized grids,three rows checkered plates.
Ramps
For option
Door glass
5mm tempered glass
Air make-up system
Air inlet fan system
2 sets 4kw centrifugal fan, fan model: YDW-4.5L
Exhausted fan system
1 set 5.5kw centrifugal fan, fan model: YDW-5.6S
Air inlet capacity
24000m³/h
Exhuasted capacity
15000m³/h
Exhausted ducting
Four meters straight galvanized ducting and one 135 degrees elbow
Purification system
Pre-filter
G3 grade
Ceiling filter
600G filter EU5 / F5
Floor filter
Fiberglass filter
Exhausted filter
Filber glass and carbon filter
Heating system
Heat Exchanger
SUS304 200KW stainless heating exchanger
Heating burner
Riello G20 diesel oil burner
Heating productivity
20000Kcal/hour
Spray to baking switch
Pneumatic damper
Chimney ducting
4 meters chimney and one chimney elbow
heating temperature
Maximum 80℃
fuel consumption
6-8L/vehicle
Lighting system
Ceiling lighting
8 Units, each 4 * 24W LED lamps.
Side lighting
For option
Illumination
1000LUX
Control system
Switch controlling system
Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm,
pressure gauge
