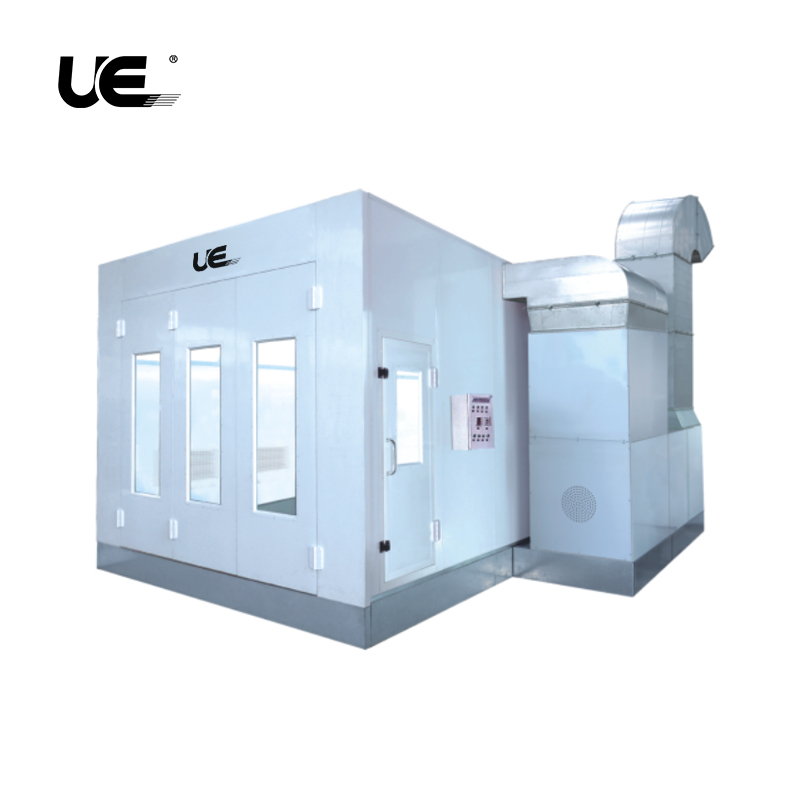

Product parameters

1. The height is 300mm standard steel structure platform, 2 lines of floor grid, 3 lines of patterned board;

 2. The wall board color board is 0.426mm with double sealing edges, and the insulation material is rock wool; Front end with safety door; 4 backwall panels (left and right backboard width is symmetrical, middle backboard width is symmetrical);

 3. The thickness of the 3 doors and the front vertical plate is 0.426mm.

 4. The generator seal plate is 0.426mm color plate with insulation layer;

 5. New 8 sets of upper lamps, 4 sets of 3 ×18WLED lamps on each side; No lower row lights;

 6, 4 groups of powder spraying bracket, hinged installation;

 7. Air supply: 1 18000m3/h european-style fan; Exhaust;

 8. Heating mode: infrared heating: 4 groups on each side, a total of 8 groups of 24kw; Divided into two groups to control;

 9, galvanized roof

 10. Zinc plate 740×740mm exhaust pipe 4 meters, 90° elbow 1;

 11. Imported tuyere cotton, common ground cotton and combined earth mesh;

 12. 2 standard plates;

 13. Painting power: 10kw; Baking power: 24kw;

14. environmental protection filter: can be selected with activated carbon environmental protection or light oxygen environmental protection
