Electric cab semi-closed sweeper UE-1800

Machine Type:Floor Sweeper
After Warranty S..Online support
Showroom Locat...None
Place of Origin:Shanghai,China

0086-13764058563

Features

● High-power vacuum suction fan, high-power filtering system, strong negative pressure suction, no dust.
● Semi-closed sweeping machine is an automatic cleaning and cleaning machine combining dust suction, sweeping, water spraying and dust vibration.
● Imported electronic control system with over-current and under-voltage protection, aggravated the chassis, and a large bin capacity.
● The body uses branded parts, which provides a good foundation for the stable performance of the product.
● Built-in powerful dust control system, its dust suction ability is naturally strong.
● Leading cleaning and throwing technology, the theoretical value of dust box utilization rate can reach 100%.
● Tianneng high-performance maintenance-free battery, no leakage, no harmful gas, no post-maintenance, low carbon and environmental protection.
● Single chip microcomputer is used to control the forward and reverse rotation and speed regulation of the DC motor, and there is automatic protection for over current.
● Intelligent single-chip microcomputer control technology, with low power consumption and powerful features, greatly saves peripheral components and is easy to upgrade.
● Semi-enclosed glass cab, wider driving vision.
● Solidly enlarged tires, sturdy and durable, high chassis, no need to decelerate over speed reduction belt.
● Highly equipped with LED headlights, working at night in the morning and rest assured.
● Display graphics or files such as left turn, right turn, reversing, braking, lights, dust, sweeping, etc.
● Using the A / D converter built in the single chip microcomputer to implement automatic collection of electricity and water, no peripheral components, high work efficiency.
● Display the working voltage of the battery in real time. If it is too low, it will alarm automatically, prompting you to charge quickly.
● UE-1800 sweeper has the advantages of strong anti-interference, long life, wide viewing angle, exquisite appearance, low voltage, low power consumption, high contrast, wide temperature and so on.

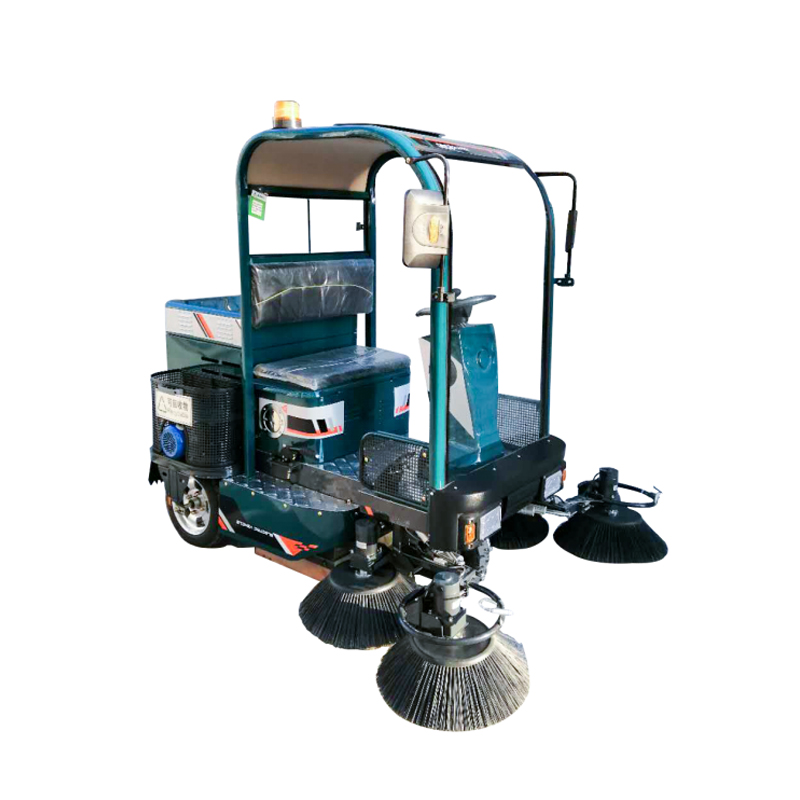

The UE-1800 electric cab semi-closed sweeper is an automatic cleaning all-in-one machine that combines sweeping, vacuuming, water spraying, and vibration dusting. It is more suitable for indoor flat floor cleaning or outdoor concrete and asphalt cleaning. This sweeper is mainly used for cleaning indoor or outdoor places such as large workshops, enterprises, warehouses, parks, residential villas, sanitation, squares, schools, etc. It is an essential cleaning tool for factory cleaning property companies.

Product Paramenters

project name	unit	parameter
Sweeping width	mm	≥1800
Work efficiency	m² / h	12000-15000
Turning radius	mm	1200
Main brush length	mm	800
Side brush diameter	mm	500
Number of side brushes	only	4
Power source rated voltage	V	48
battery capacity	AH	480/4100
Continuous working time	H	3/5
Trash box capacity	L	180
Water tank capacity	L	60
Driving power (motor)	W	1200
Working power (side brush motor)	W	80×4
Working power (main brush motor)	W	800
Working power (suction fan)	W	400
Working power (double vibration dust motor)	W	80
Gradeability	%	35
Driving speed	km / h	0-12
Working speed	km / h	0-8
Filtering area (filtration)	M2	5
net weight	Kg	480
size	mm	2250×1800×1950
