Specifications

Wheel alignment compensation function

* Four -point manual/ automatic ROC optional features

* off-set compensation

* 14° 20 ° measuring range of kingpin optional features

* A4, A6, A8 and B5 toe curve special measurement and adjustment software

* Operation with timely reminder

* With the new data increasing menu

* wave filtering technology to enhance the stability of device

* With data memory function, supporting to measure and adjust the camber in the vacant state

* CCD permits measuring at a large range and automatically measures Kingpin parameters.

* The host computer and measuring head, with dual electronic level settings, can monitor the level of

measurement state of measuring head all the times. And ensure accurate measurement data reliability

* With measurement function of tread difference, wheelbase difference and declination axis

* Supporting the function of swapping measurement head and calibration-free

* With measurement function of unit rod and dual rod

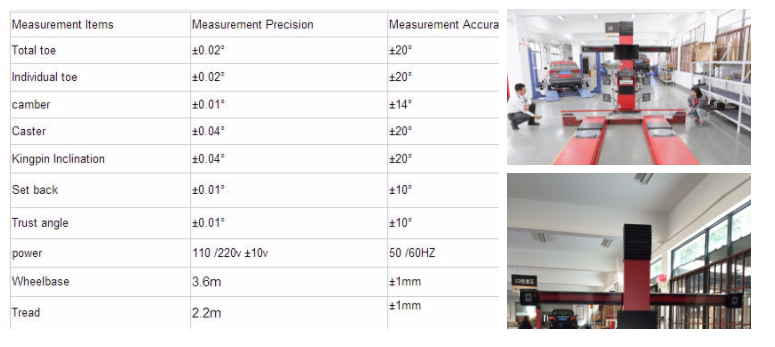

Measurement Items
