Product

PRODUCT

Place of Origin:Italy

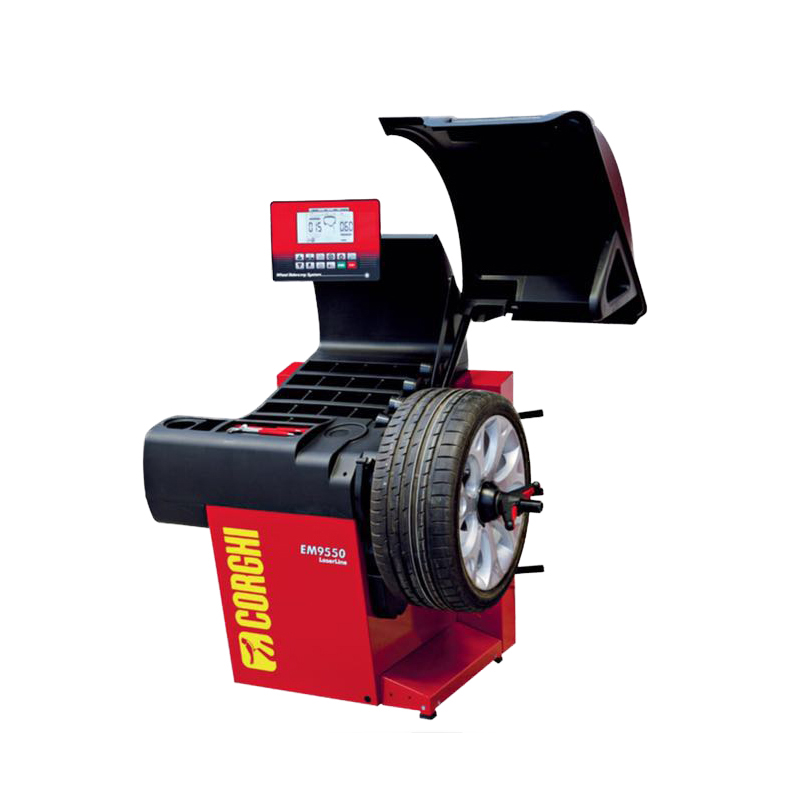

Model Number:EM 9550 Plus LaserLine
Power Supply:115/230
Power supply vol...115/230 V1Ph 50/60Hz

0086-13764058563

Product Paramenters

Power supply voltage	115/230 V 1Ph 50/60 Hz	Total power absorption	400W
Balancing speed	75-85-98 rpm	Maximum unbalance value	999 g 35,3 oz
Resolution	1 g 0,0353 oz	Average measurement time	(14kg wheel)5,5 s
Shaft diameter	40 mm 1,57”	Rim width setting range	1,5” ÷ 20”
Rim diameter setting range	1” ÷ 35”	Rim diameter measurement range	10” ÷ 28”
Maximum wheel width(with guard)600 mm 23,6”		Maximum wheel diameter(with guard)	1117 mm 44”
Maximum wheel/machine distance	275 mm 10,82”	Maximum wheel weight	75 Kg
Machine weight	145 kg	Maximum dimensions l x p x h	1453 x 894 x 1858 mm
