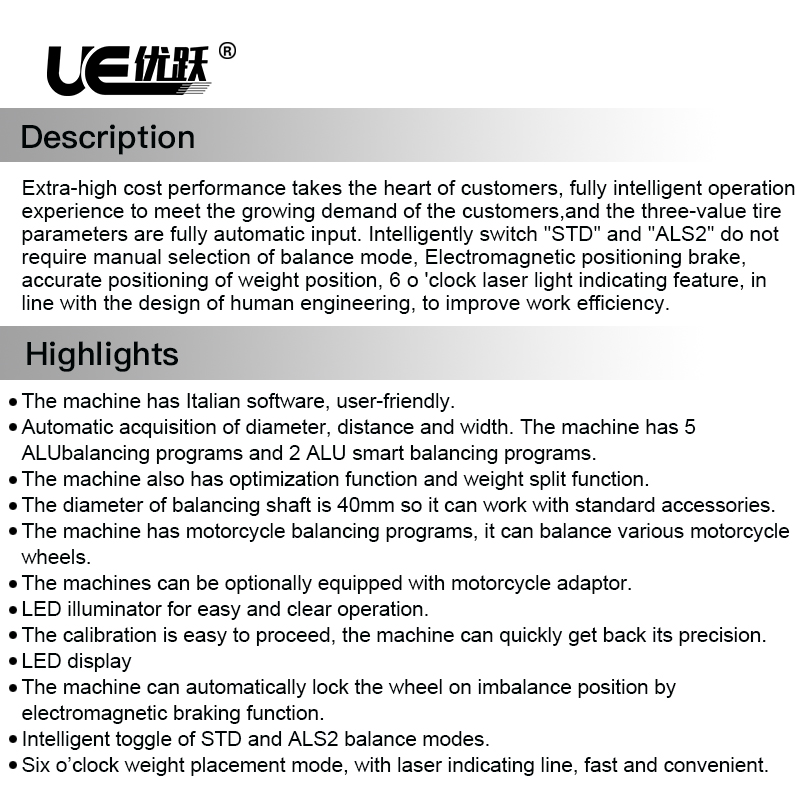

Description
Extra-high cost performance takes the heart of customers, fully intelligent
operation experience to meet the growing demand of the customers,
and the three-value tire parameters are fully automatic input. Intelligently
switch "STD" and "ALS2" do not require manual selection of balance
mode, Electromagnetic positioning brake, accurate positioning of
weight position, 6 o 'clock laser light indicating feature, in line with the
design of human engineering, to improve work efficiency.

Highlights
The machine has Italian software, user-friendly.
Automatic acquisition of diameter, distance and width. The machine
has 5 ALUbalancing programs and 2 ALU smart balancing programs.
The machine also has optimization function and weight split function.
The diameter of balancing shaft is 40mm so it can work with standard
accessories.
The machine has motorcycle balancing programs, it can balance
various motorcycle wheels.
The machines can be optionally equipped with motorcycle adaptor.
LED illuminator for easy and clear operation.
The calibration is easy to proceed, the machine can quickly get back its
precision.
LED display
The machine can automatically lock the wheel on imbalance position
by electromagnetic braking function.
Intelligent toggle of STD and ALS2 balance modes.
Six o’clock weight placement mode, with laser indicating line, fast and
convenient.

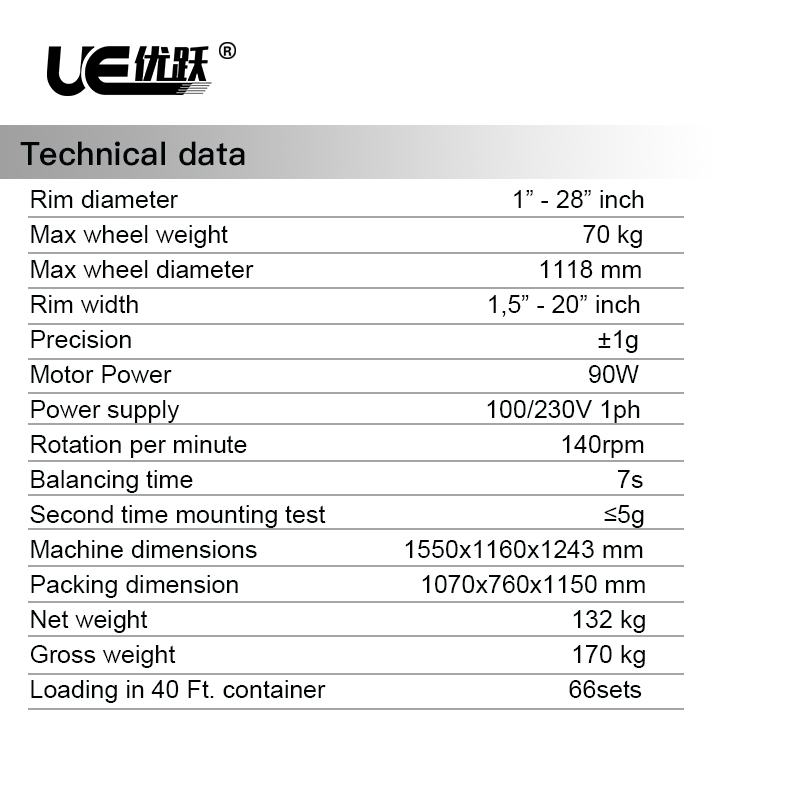

Technical data
Rim diameter                                                                       1” - 28” inch
Max wheel weight                                                                          70 kg
Max wheel diameter                                                                 1118 mm
Rim width                                                                          1,5” - 20” inch
Precision                                                                                           ±1g
Motor Power                                                                                    90W
Power supply                                                                    100/230V 1ph
Rotation per minute                                                                     140rpm
Balancing time                                                                                     7s
Second time mounting test                                                                ≤5g
Machine dimensions                                             1550x1160x1243 mm
Packing dimension                                                  1070x760x1150 mm
Net weight                                                                                     132 kg
Gross weight                                                                                  170kg
Loading in 40 Ft. container                                                           66 sets
