Description

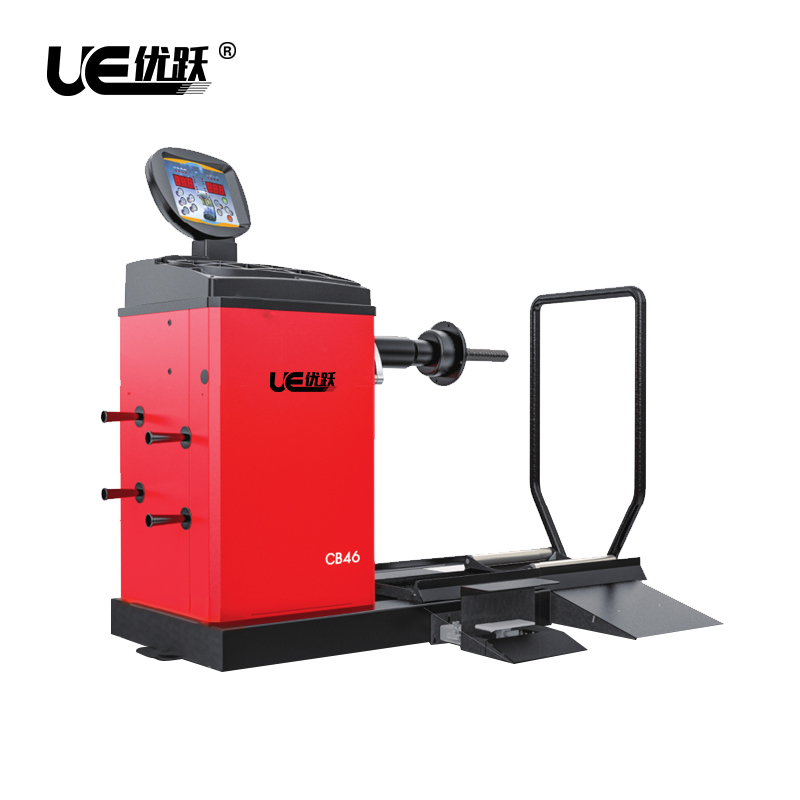

Wheel balancer, CB46, the latest leading technology in the world, which
is designed for Car and Truck. Equipped with inverter technology system,
100% accurate positioning imbalance position. Two values automatic input
of tire parameters. Switching “STD” and “ASL2” model intelligently without
any manual operation to choose the model of balance. At six o 'clock, the
laser pointer to indicate the stick on weight position, which is ergonomic
and practical. Ultra-low noise level 8 motor, strong power supports the
safety in the first place, during the accurate and efficient balance, being
your guardian and just right beside you!

Highlights
The machine has Italian software, user-friendly.
The machine can balance both car wheel and truck wheel.
Automatic acquisition of distance and diameter of the wheel.
The machine has the function to stop the wheel on imbalance
positions.
Inverter technology gives different speed to the motor.
The machine is integrated with pneumatic lift, efficiently and
labor-saving.
Intelligent toggle of STD and ALS2 balance modes.
(smart arm auto sensing)
Six o’clock stick on mode, with laser indicating line, fast and
convenient.

Technical data
Rim diameter                                                      1” - 28” inch
Max wheel weight                                                       200 kg
Max wheel diameter                                                1200mm
Rim width                                                           2” - 20” inch
Precision                                           ±1g (car) / ±10g (truck)
Motor Power                                                              0.37kW
Power supply                                                   100/230V 1ph
Rotation per minute                                      80rpm / 120rpm
Balancing time                                       9s (car) / 20s (truck)
Second time mounting test                                              ≤5g
Machine dimensions                           1600x1100x1480 mm
Packing dimension                              1700x1100x1240 mm
Net weight                                                                   285 kg
Gross weight                                                               318 kg
Loading in 40 Ft. container                                         14 sets
