UE-GT995N 430 435 The car tyre changer machine price size 13 to 24inch wheel changer machine for sal

UE-GT995N 430 435 The car tyre changer machine price size 13 to 24inch wheel changer machine for sale

Place of Origin:Shanghai,China
Model Number:UE-GT995N 430 435
Operating Pressu..8-10bar
Warranty:12Months

0086-13764058563

Description

The third generation of 895, exceeds itself once again. Meeting the higher standards
in every aspects to ensure bringing the improvement performances and luxurious
experience in mounting and demounting .Positive exploring the development
of global large-sized tire. Improvement and exceeded again and again, fearless
and outstanding. The large box body with the double assist arms show its solid.

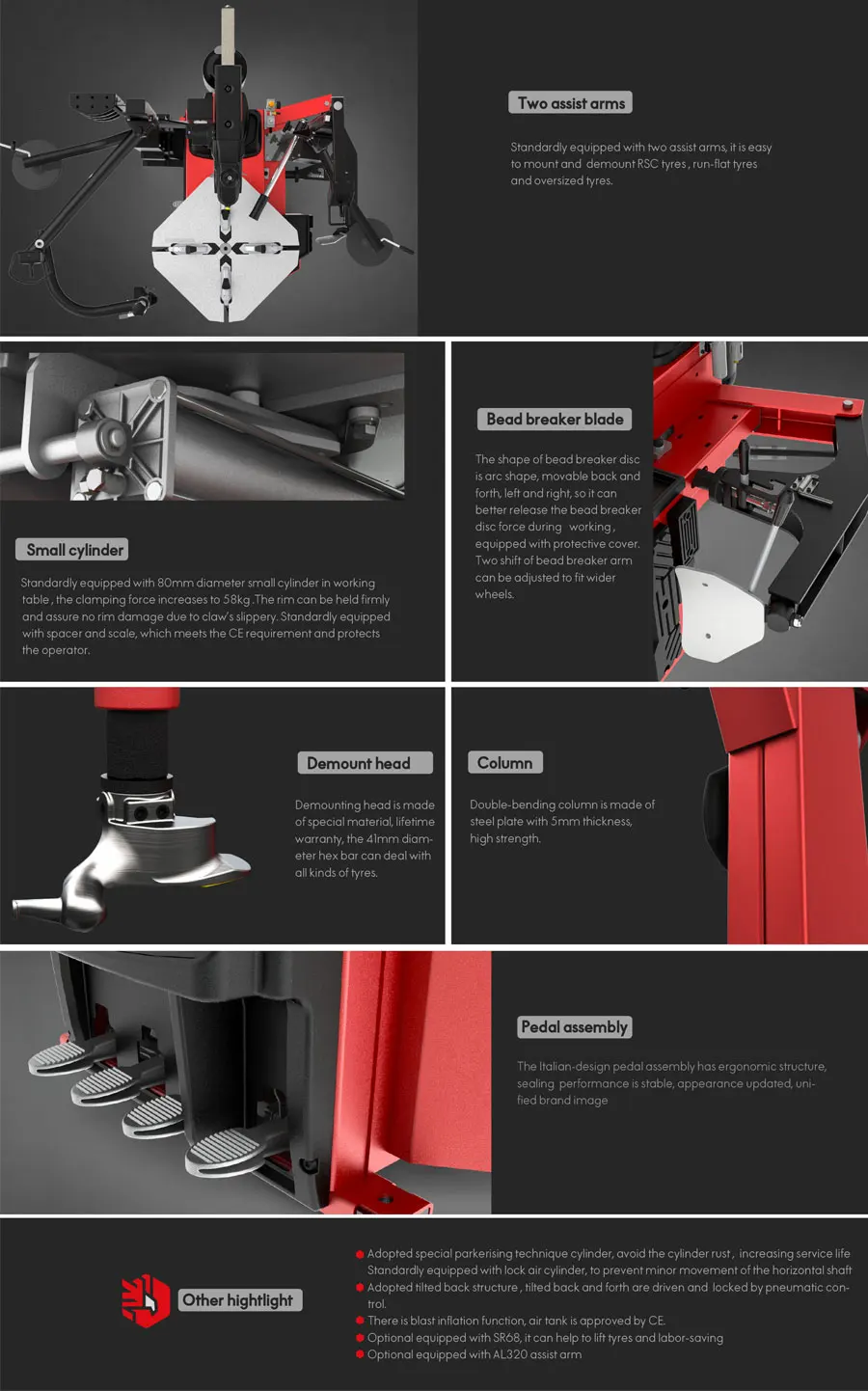

Highlights
Demounting head is made of special material, lifetime warranty, the
41mm diameter hex bar can deal with all kinds of tyres.
The shape of bead breaker disc is arc shape, movable back and forth,
left and right, so it can better release the bead breaker disc force during
working , equipped with protective cover. Two shift of bead breaker arm
can be adjusted to fit wider wheels.
Adopted special parkerising technique cylinder, avoid the cylinder rust ,
increasing service life.
The Italian-design pedal assembly has ergonomic structure, sealing
performance is stable, appearance updated, unified brand image.
Standardly equipped with lock air cylinder, to prevent minor movement
of the horizontal shaft.
Double-bending column is made of steel plate with 5mm thickness,
high strength.
Standardly equipped with 80mm diameter small cylinder in working
table , the clamping force increases to 58kg .The rim can be held firmly
and assure no rim damage due to claw’s slippery. Standardly equipped
with spacer and scale, which meets the CE requirement and protects
the operator.
Adopted tilted back structure , tilted back and forth are driven and
locked by pneumatic control.
Standardly equipped with two assist arms, it is easy to mount and
demount RSC tyres , run-flat tyres and oversized tyres.
There is blast inflation function, air tank is approved by CE.
Optional equipped with SR68, it can help to lift tyres and labor-saving.
Optional equipped with AL320 assist arm.

Inside clamping range 15” - 27” inch Rim width 3” - 15” inch Max wheel diameter 1180 mm Working pressure 8 - 10 bar Bead breaking force 2500 kg Powers supply 110V/220V/380V Motor Power 0.75kW/1.1kW Rotation per minute 6.5/13rpm Noise <70dB Machine dimensions 1950×2450×2200 mm Packing dimensions 1440×1140×1830 mm Net weight 500 kg Gross weight 595 kg Loading in 40 Ft. container 16 sets
